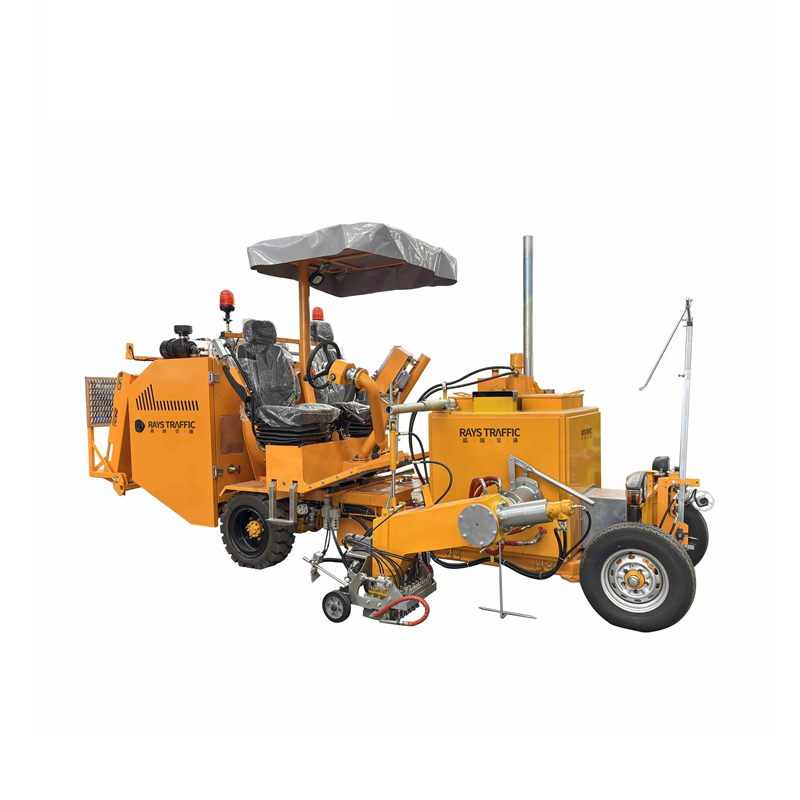

W-TPD500E Driving Thermoplastic Extrusion Road Marking Equipment

W-TPD500E driving thermoplastic extrusion road marking equipment is designed for continuous medium to large pavement marking projects. Powered by a 66KW Kubota 4-cylinder water-cooled diesel engine (Japan) and equipped with a fully imported heating system (USA Beckett burner + Germany thermal oil transfer+automatic temperature controller), it ensures consistent material flow for continuous road marking jobs. The 500L thermoplastic tank and 150L pressurized glass bead tank minimize refilling, maximizing efficiency, ensure 4,000–5,000 m²/day of high-quality road markings.

W-TPD500E comes with Danfoss hydrostatic transmission (Denmark) and excellent rear-wheel drive system(often used in truck), enabling smooth speed control (0–20 km/h) and 11° gradeability for slopes or uneven surfaces. W-TPD500E can handle whether flat road surface or mountainous roads simply.

The excellent W-TPD500E thermoplastic extruder supply 5–50 cm various line widths. You can switch common flat lines, double lines, automatic skip lines, or popular line styles like chess lines, stair flex lines, and longflex lines on computer controller easily. Upgrade computer controller enable special road marking patterns such as edgeflex lines, and combined continuous/interrupted lines and dot lines in a single pass. These profiled markings enhance nighttime and wet-weather visibility with embedded glass beads, significantly reducing road accidents.

1. Intelligent Computer Controller
Smart Computer Controller System support various pavement marking patterns:
Solid line, automatic skip line, chessboard, rib, stair lines line patterns are pre-stored and switched.
Simply set up on the computer controller to freely combine the square line marking patterns you required.
Double solid line, automatic double skip line patterns are optional.
Edgeflex, round dot line, drop-sharped dot line, continuous and interrupted line in one pass can be handled by high-version computer controller.
Perfectly controls the circuit, hydraulic, pneumatic, heating, and marking modules, more convenient and accurate.
Display and store real-time road marking construction data.

2. Powerful Engine
66KW Kubota 4-Cylinder Water-Cooled Diesel Engine (Japan) is strong, durable, and more efficient.

3. Smooth Hydraulic Drive System
Danfoss Hydraulic Transmission System(Denmark) + rear-wheel drive system ensures precise speed control (0-20 km/h) and excellent hill climbing ability, allows working on flat roads and uphill.

4. High Product Capacity
500L thermoplastic paint tank + 150L glass bead tank minimizes refilling and can reach 4,000–5,000m²/8h product capacity.
120L enlarged diesel tank ensures at least one day’s machine driving and paint heating.

5. Support Different Line Patterns
Standard 30cm thermoplastic extruder (5/10/15/20/25/30cm adjustable), 40/45/50cm(optional).
Thermoplastic extrusion system can handle flat line and various profiled markings.
15cm flat line screed shoe(optional): 5/10/12/15/20/25/30/35/40/45/50cm optional.
Thermoplastic convex line shoe (optional)

6. Superior Retroreflectivity
Pressurized glass bead tank + pneumatic bead gun ensure beads embed into thermoplastic paint well, enhancing pavement markings nighttime visibility.
Supports dual bead sizes and optional 2nd bead gun.

7. Efficient Heating & Temperature Control
USA Beckett burner + Germany thermal oil transfer circulation + auto-temperature control system ensures uniform heating and stable material performance.

8. Enhanced Cooling System
200L hydraulic oil tank + oil cooler prevents overheating, even during prolonged multi-module operations.

9. User-Friendly Operation
One-touch controls for hopper lifting, material feeding, hydraulic pointer adjustment, warning lights, and speed settings.
Sliding operator sets allow left/right positioning for better vision.
Optional application on both sides of machine avoid marking against the direction of travel.
Standard sunshade for operator comfort.

10. Easy Maintenance
Globally renowned spare parts for easy local service.
Enlarged engine room door for quick access during maintenance and repair.

11. Durable & Cost-Effective
High-grade anti-corrosion treatment extends lifespan and reduces long-term costs.

12. Additional Functions Optional
Hydraulic broom, pre-marking system, cruise control, extrusion system, burning system, special line patterns, and other special requirements.
